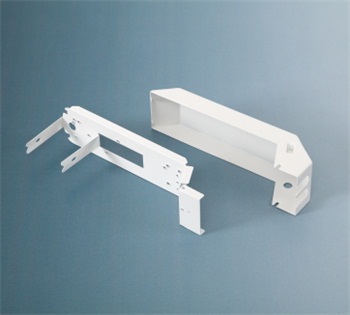

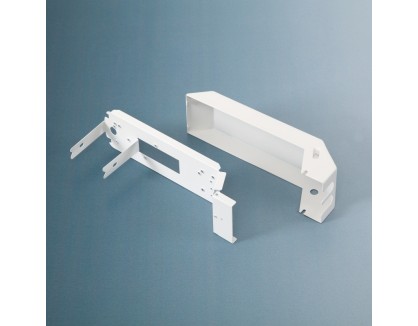

Customized Metal Stamped Housing
Customized metal stamping housing used on LED lighting/safety lighting/emergency lighting, high quality with durability and they will be formed by stamping out of tooling with stable quality, the material can be galvanized steel or iron with 0.5-1.0mm thickness, LED light and driver will be assembled on the lugs of the upper casing, powder coating makes the metal casing more elegant and long life time.
- Details
This metal stamping casing is designed specially for led lighting,which will be mounted in the wall and just the LED light will be out of ceiling, it is very light in weight and can be assembled easily with only two screws from one end of the metal casing, stamping out of tooling makes the dimensions are stable on quality, all holes will be M3 or M4 tapped and each threaded holes will be checked before coating, coating has zero defect.
| Item No. | HT-060 | |||||||||||
| Description | metal stamped casing,metal stamping housing,metal box,metal case,sheet metal casing, metal stamping parts | |||||||||||
| Size | 150X60X80MM | |||||||||||
| Machinery | 60T pnumatic press machine | |||||||||||
| Material | Galvanized steel(SGCC) with 0.5mm thick, iron is available per request | |||||||||||
| Processes | compound die stamping(blanking,bending,tapping) | |||||||||||
| Tolerance | 0.10mm | |||||||||||
| Type of welding | N/A, but the sides can be welded per customers request | |||||||||||
| Surface finish | white powder coating | |||||||||||
| Packing | each piece will be packed in one bubble bag, 16 sets in one carton | |||||||||||
| Environment friendly | all materials and processes are Rohs conformed. | |||||||||||
| Quality system | ISO9001 | |||||||||||
| Document supplied | Yes, check reports for both dimensions and appearance, chemical composition resport,production flow chart | |||||||||||
| Application | used as metal housing,metal casing,sheet metal casing,metal box,metal case on lighting,electronics,architecture,communication | |||||||||||
| OEM | Yes | |||||||||||
