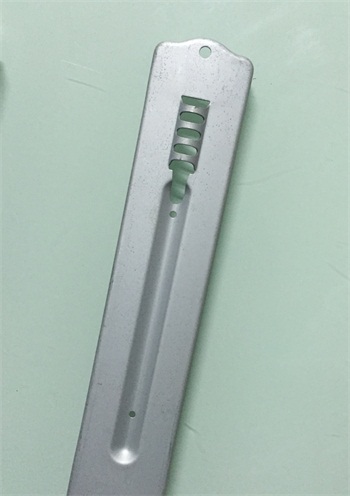

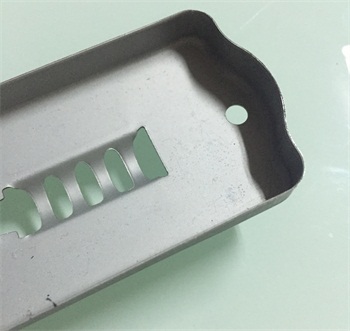

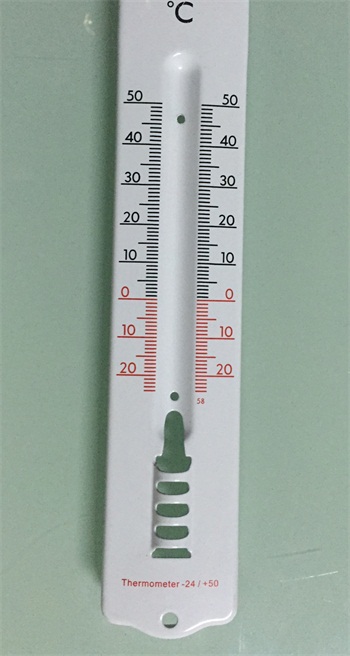

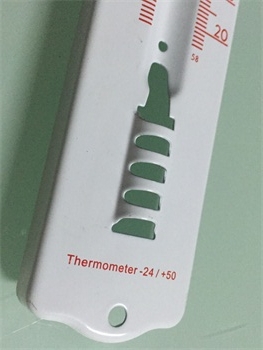

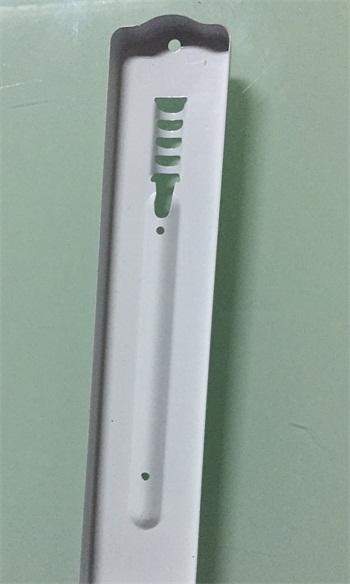

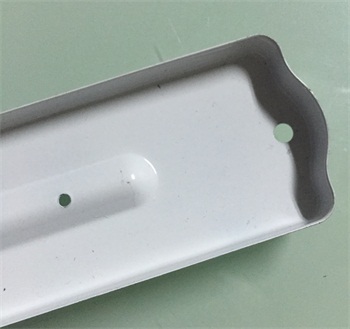

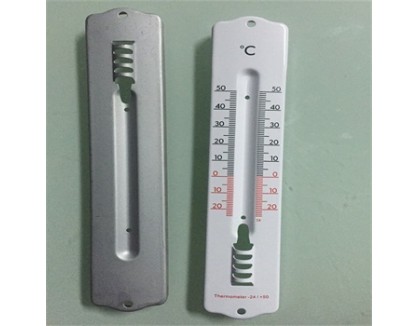

Metal Stamped Casing For Thermometer
Thermometer can be seen in many places, its outer casing can be made with plastic or sheet metal, sheet metal have much better heat resistance and durability, no color fading, this type of metal casing is made by compound die stamping.
- Details
Compound die stamping are widely used to produce big size parts or small volume parts, but its precision is good enough for most assembly, this metal casing is also made by compound die stamping(4 steps), all dimensions are within requested tolerance like +/-0.1mm, the logo and numbers will be printed on the surface, the printing can not be removed after one million wipping with cloth.
| Item No. | HT-077 | |||||||||||
| Description | metal stamping casing,metal stamping housing,metal stamping case,metal stamping box | |||||||||||
| Size | 200X40X15MM | |||||||||||
| Machinery | 45T pnumatic press machine | |||||||||||
| Material | mild steel with 0.5mm thickness, aluminum and iron is available | |||||||||||
| Processes | Compound die stamping | |||||||||||
| Tolerance | 0.10mm | |||||||||||
| Type of welding | N/A | |||||||||||
| Surface finish | white powder coating, then, silk printing | |||||||||||
| Packing | 1pcs per bag,50pcs per carton, less than 6.0kg per carton | |||||||||||
| Environment friendly | all materials and processes are Rohs conformed. | |||||||||||
| Quality system | ISO9001 | |||||||||||
| Document supplied | Yes, check reports for both dimensions and appearance, chemical composition resport,production flow chart | |||||||||||
| Application | used as metal casing,metal housing,metal box,metal case on electronics,lighting,thermometer,etc | |||||||||||
| OEM | Yes | |||||||||||
