Metal Stamping Clamp
HAI TONG manufacture various types of metal clamps or metal brackets with metal stamping processes inhouse, to hold the metal control body and receiving system body on agriculture machinery.
- Details

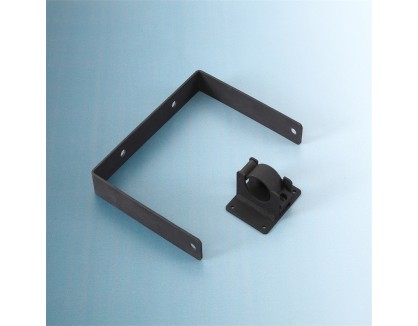

U metal bracket
This stamping brackets are made with carbon steel with 3.0mm thickness by blanking and bending, then powder coated in black with sandy texture, it will be fixed on both sides of the control body with M10 screws, then the whole body will be held on the agriculture machinery.
Custom square metal stamping clamp
It consists of several small metal plates which are metal stamped, they will be TIG welded on the bottom plate and use butterfly screw to fasten the receiving system body on the machinery.
| Item No. | HT-070 | |||||||||||
| Description | metal clamp,metal bracket,metal stamping bracket,metal stamping clamp, "U" bracket | |||||||||||
| Machinery | 45T pnumatic press machine | |||||||||||
| Material | carbon steel with 3.0mm thick, iron and stainless steel is available per request | |||||||||||
| Processes | compound die stamping(blanking,bending) | |||||||||||
| Tolerance | 0.10mm | |||||||||||
| Type of welding | TIG welding,the square bracket will be TIG welded together piece by piece. | |||||||||||
| Surface finish | powder coating in black, different colors can be available. | |||||||||||
| Packing | each piece will be packed in one PE bag, 20 sets in one carton | |||||||||||
| Environment friendly | all materials and processes are Rohs conformed. | |||||||||||
| Quality system | ISO9001 | |||||||||||
| Document supplied |
Yes,
check reports for both dimensio |
|||||||||||
| Application | used as clamp or bracket on machinery,communication,architecture,electronics,etc | |||||||||||
