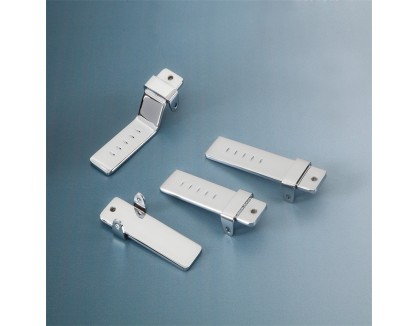

Stamping Part For Motorcycle
This serial stamping parts are used on motorcycle
and exported to USA, the material is 6.0mm SPHC
and need to be fine polished in mirror, and then
bright chrome plated without any defects like
peel off, white dots.
- Details
Metal stamping parts for motorcycle
These quality stamping parts are used on Mustang motorcycle in USA with regular business, the material is 6.0mm thick, the surface is coarse, and so the most importance is polishing which take us around 2/3 times for production, every single part have to be quality checked after polishing, then, they will be put in PVC tray and delivered to be plated, during packaging, all parts will be quality checked and at least 10% have to be re-plated, really time consumption.
| Item No. | HT-072 | |||||||||||
| Description | chrome plated stamping parts, plated stampings, sheet metal stamping parts | |||||||||||
| Size | 115X38X40MM | |||||||||||
| Machinery | 80T pnumatic press machine | |||||||||||
| Material | hot rolled pickled steel with 6.0mm thick | |||||||||||
| Processes | compound die stamping(blanking,bending) | |||||||||||
| Tolerance | 0.10mm | |||||||||||
| Type of welding | TIG welding the "U" bracket on the tongue. | |||||||||||
| Surface finish | mirror polishing, bright chrome plating | |||||||||||
| Packing | each piece will be packed in tissue page,15pcs in one PVC tray, 10 trays in one carton | |||||||||||
| Environment friendly | all materials and processes are Rohs conformed. | |||||||||||
| Quality system | ISO9001 | |||||||||||
| Document supplied | Yes, check reports for both dimensions and appearance, chemical composition resport,production flow chart | |||||||||||
| Application | used as metal tongue on motorcyle | |||||||||||
